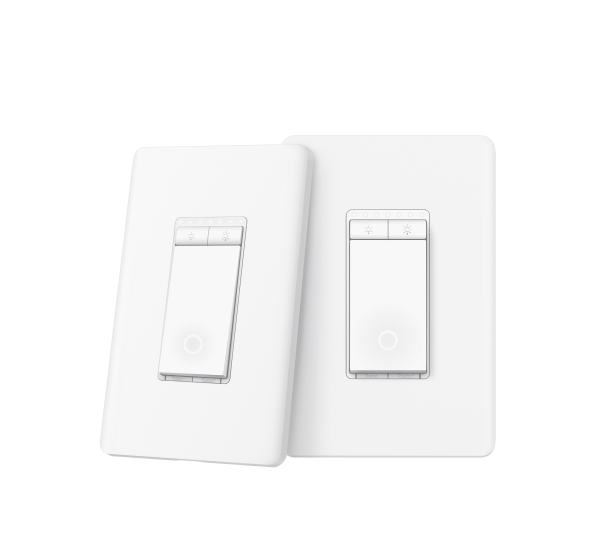

Matter Smart Wi-Fi Dimmer Switch | Tapo S505D(2-Pack)

Matter Certified 300W Dimmable Apple Home Support 2.4GHz Wi-Fi
Sale price$36.99 Regular price$44.99

Tax excluded. Shipping calculated at checkout

  • Matter & Voice Compatibility
  • Full Linear Dimming Control
  • Smart Single Pole & Custom Schedules
  • Security Protection Away Mode
  • App-Guided Wiring Setup
Only 2 units left
🚚 Delivery time: Calculating...
  • Tracking status may only update after the order is processed at the carrier facility.
  • Weekends may affect shipping and delivery.
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Buy now
Secured Shopping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa
Shipping from Canada
  • Free Shipping for Orders Over CAD 200
  • 30-Day No Reason Return Policy
  • Local English/French Customer Service
  • 2 Years Warranty
  • Matter & Voice Compatibility: Integrates with Apple HomeKit, Amazon Alexa, Google Home, and Samsung SmartThings. Supports remote app control and hands-free voice commands via multi-platform management.
  • Full Linear Dimming Control: Adjusts illumination brightness from 0% to 100% to manage light output. Features a Fade On/Off setting that produces smooth lighting transitions to eliminate abrupt changes and minimize eye strain.
  • Smart Single Pole & Custom Schedules: Replicates traditional single-pole wall switches to automate existing fixtures. Programs custom operational timers and schedules to turn on, off, or dim connected lighting systems at specific times.
  • Security Protection Away Mode: Features an integrated Away Mode that cycles connected lighting fixtures on and off at randomized intervals to simulate physical home occupancy and deter unauthorized entry while away.
  • App-Guided Wiring Setup: Provides step-by-step physical installation instructions via the Tapo app. Hardware requires a dedicated neutral wire and a standard 2.4 GHz Wi-Fi network connection to complete the configuration.

NETWORK

Protocol IEEE 802.11b/g/n, Bluetooth (for setup only)
Wireless Type 2.4 GHz WiFi, Bluetooth 4.2 (for setup only)

GENERAL

Dimensions( H X W X D ) 5.04 × 3.33 × 1.77 in (128 × 84.6 × 44.9 mm)
Material PC (V-0, UL 94), Flame-retardant

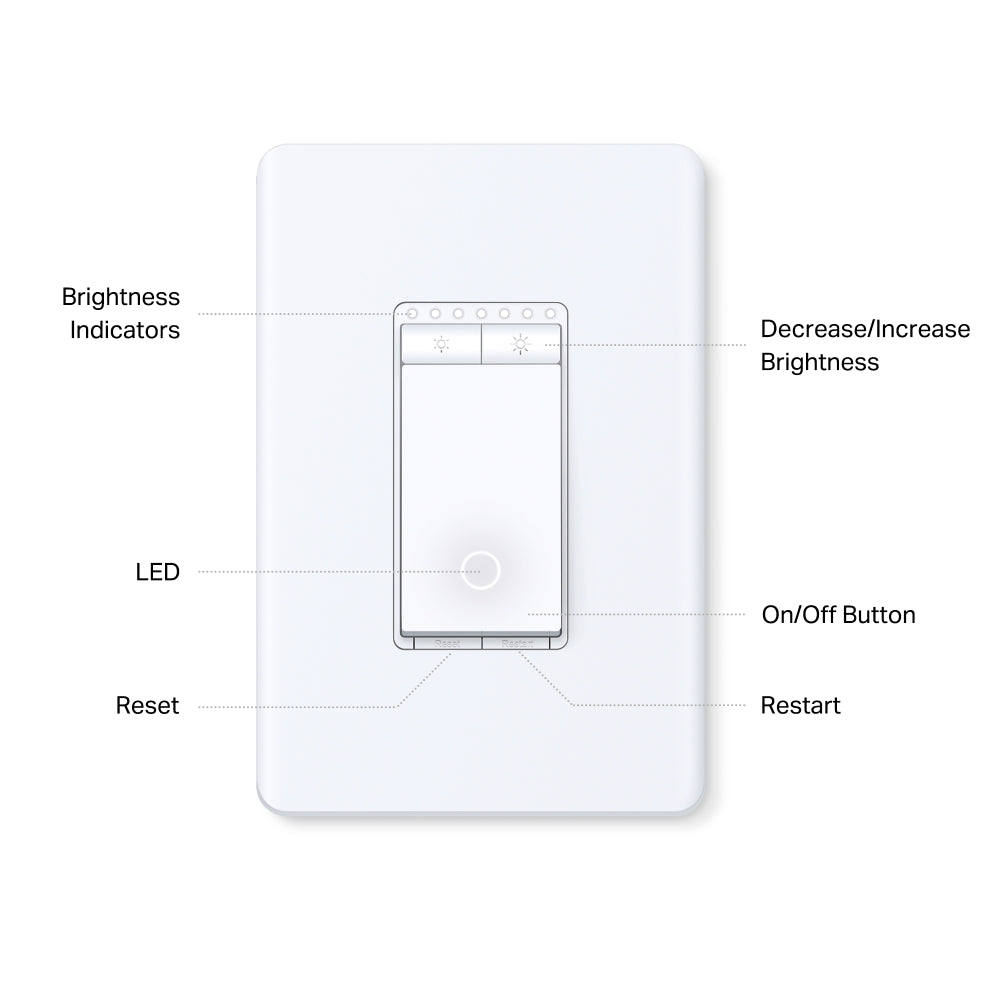

Buttons Brightness Indicators
LED indicator
Decrease/Increase Brightness Buttons
On/Off Button
Restart Button
Reset Button

Working Status

Rated 120V~, 60Hz
Maximum Load 300W INC/HAL,150W LED (TRIAC Dimmable)
Dimmable Leading Edge Dimming / TRIAC Phase Cut

COMPATIBILITY

Third-Party Platform • Matter-Certified
• Apple Home
• Alexa
• Google Assistant
• Samsung SmartThings

OTHERS

Certifications FCC, UL, RoHS
Environment 0 ºC ~ 40 ºC (32°F ~ 104°F)
10%~90% RH, Non-condensing
  • Tapo S505D×2
  • Wall Plate×2
  • Wire Nuts×4
  • Screws×4
  • Quick Start Guide
Matter Smart Wi-Fi Dimmer Switch | Tapo S505D(2-Pack)
$36.99 $44.99
Order now

Overview

Customize Lighting Ambience from Anywhere

Smart Wi-Fi Light Dimmer Switch

Tapo S505D

  •

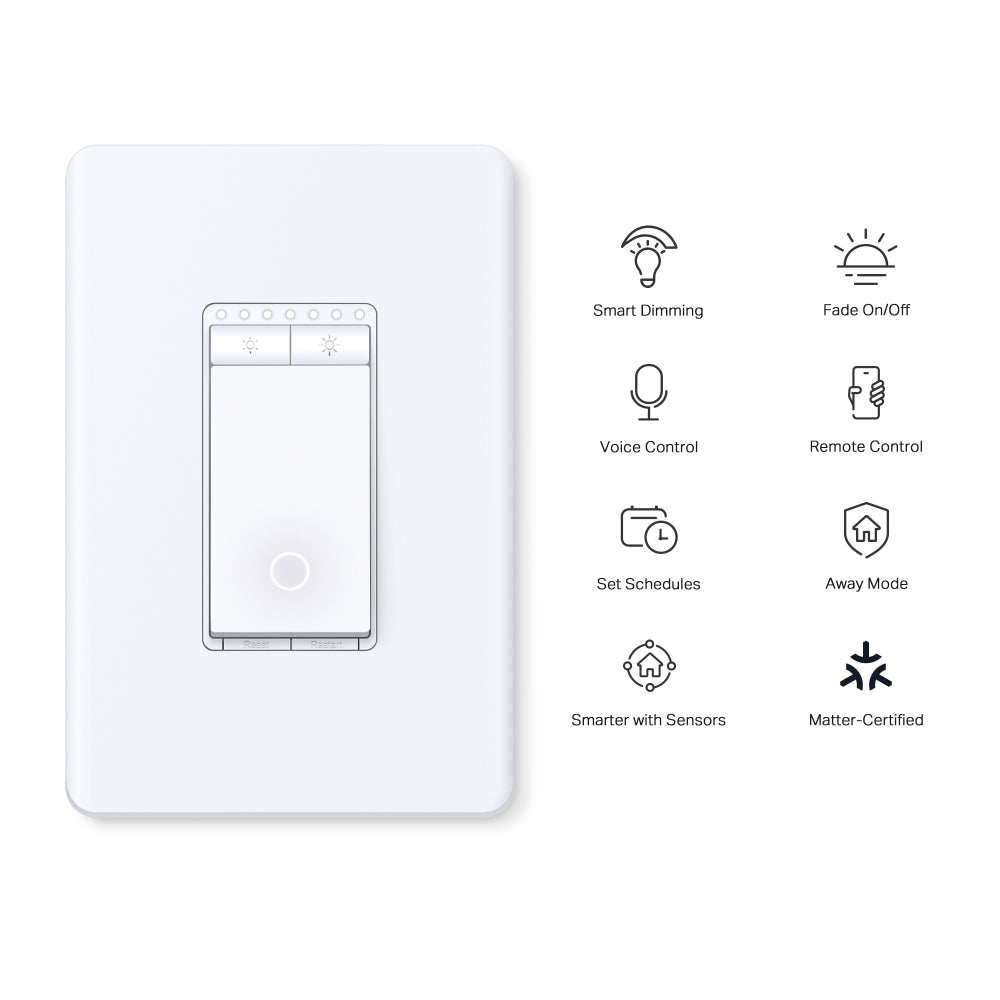

    Smart Dimming

  •

    Fade On/Off

  •

    Voice Control

  •

    Remote Control

  •

    Set Schedules

  •

    Away Mode

  •

    Smarter with Sensors

  •

    Unprecedented Compatibility

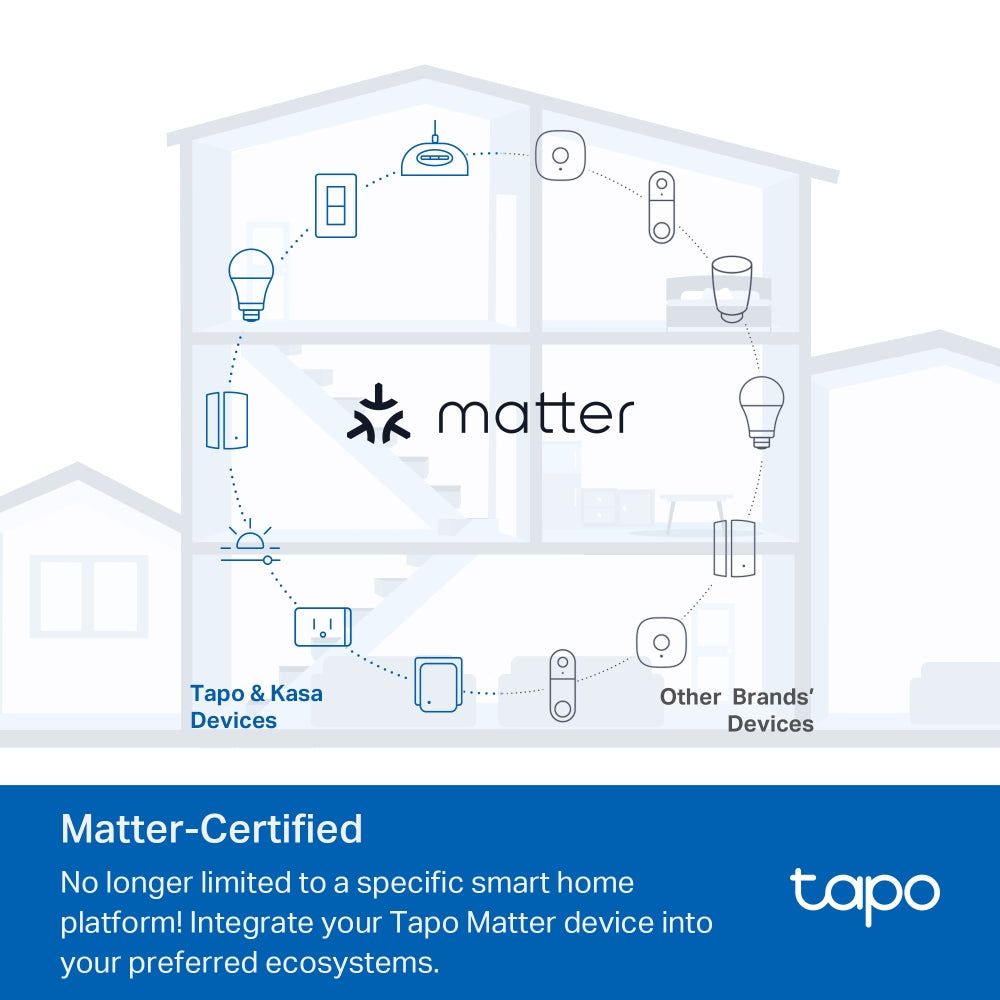

Meet Matter
All-Round Compatibility

With Matter support, using one app to control all smart devices is no longer a fantasy. Integrate Tapo Matter devices into your favorite ecosystems to create a unified smart home.

Learn more about Matter>>

TP-Link's Matter products instructions>>

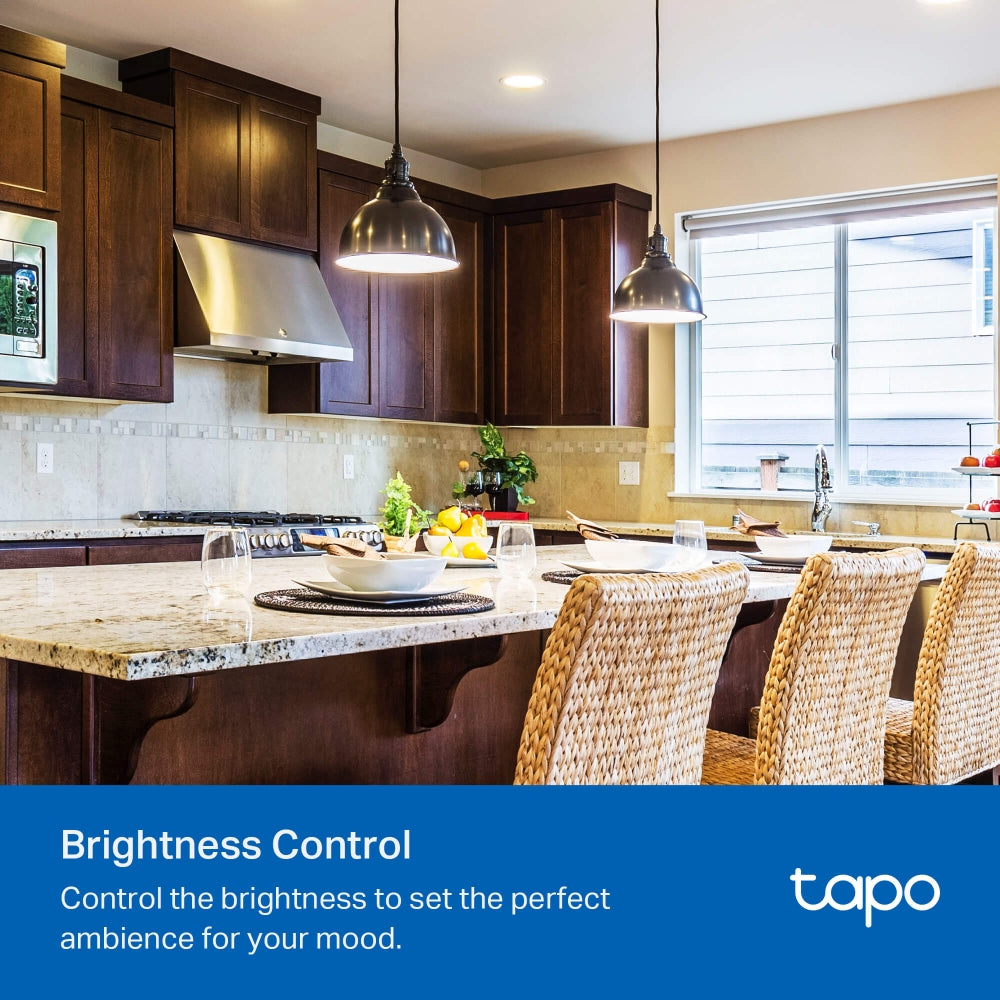

Brightness Control

Control the brightness of lights in any room and set the ambience for any activity. Designed to dim today's energy efficient LEDs as well as traditional incandescent bulbs.

*The actual lighting effect varies according to the connected lights.

Fade On/Off

Smart dimmer switches smoothly adjust lighting levels without sudden eye-irritating brightness or darkness. Fade off the lights in your child’s bedroom as they drift off to sleep.

Voice Control

Use simple voice commands to turn on/off your connected devices or set lighting levels via Siri®, Alexa, Google Assistant, or any other Matter-compliant voice assistant.

Hey Siri®, dim the living room light to 50% brightness.

Local Control

Your connected devices in your local area network (LAN) remain accessible via the Tapo app or other Matter-compatible smart home control centers, even when the household goes offline.

Control from Anywhere

Control the lighting ambience of your home spaces from anywhere, at any time using the Tapo app.



Smarter with Sensors1

Effortlessly control your lights by setting automation or scenes triggered by Tapo smart sensors.

Tapo Hub Tapo Sensor Tapo S505D
1. Tapo Smart Sensors are sold separately. When working with smart sensors, the Tapo Hub is required.

More Versatile with a Tapo Smart Button2

Pair with a Tapo Smart Button to turn your single-pole dimmer switch into a 3-way or even 4-way dimmer switch without rewiring.

Tapo Hub Tapo Button Tapo S505D
2. Tapo S505D is a Single Pole dimmer switch and not compatible with 3-way wiring. Tapo Smart Buttons are sold separately. When working with a Tapo Smart Button, the Tapo Hub is required.
  • The courier is delivering the courier.The owner talks to the courier through tapo c500

    Set Scenes

    Control multiple devices all at once for a customizable scene. Instantly set the perfect ambience for any activity.

  • a record videos icon,a SD card icon,a timer icon

    Scheduling

    Use Schedules to set your smart dimmer switch to automatically turn on and off.

    06:00PM

  • The Tapo C500,a tapocare icon, and the Tapo app is being displayed on a phone.

    Share to Family

    The Matter protocol enables family members to access your home's smart products through different control ecosystems.

  • Tapo C500 are install at different positions

    Away Mode

    Automatically turn on and off connected appliances, like lights, to make it appear as if you're home.

Enjoy Easy, Friendly Setup

Tapo offers users multiple options to simplify configuration experiences. Use Bluetooth to easily onboard the smart switch with the Tapo app. Users can also set up Tapo S505D by scanning the included code with any Matter-compatible app, such as the Alexa app, Google Home app, and Apple Home app.

Scan the QR code to download Tapo app:

the qrcode to download the tapo app
logo of tapo app
Apple Store Google Store

Easy to Install

  • icon

    Turn off the circuit breaker.
    Then remove the old wallplate of the wall switch and label the Ground and Neutral wires.
    Then disconnect the wires from the old switch.

  • icon

    Turn on the circuit breaker.
    Use a voltage detector to identify the energized wire (Line wire).
    Then turn off the circuit breaker. Label the Line and Load wires.

    danger

    Take care to avoid electric shocks.

    Line wire Load wire
  • icon

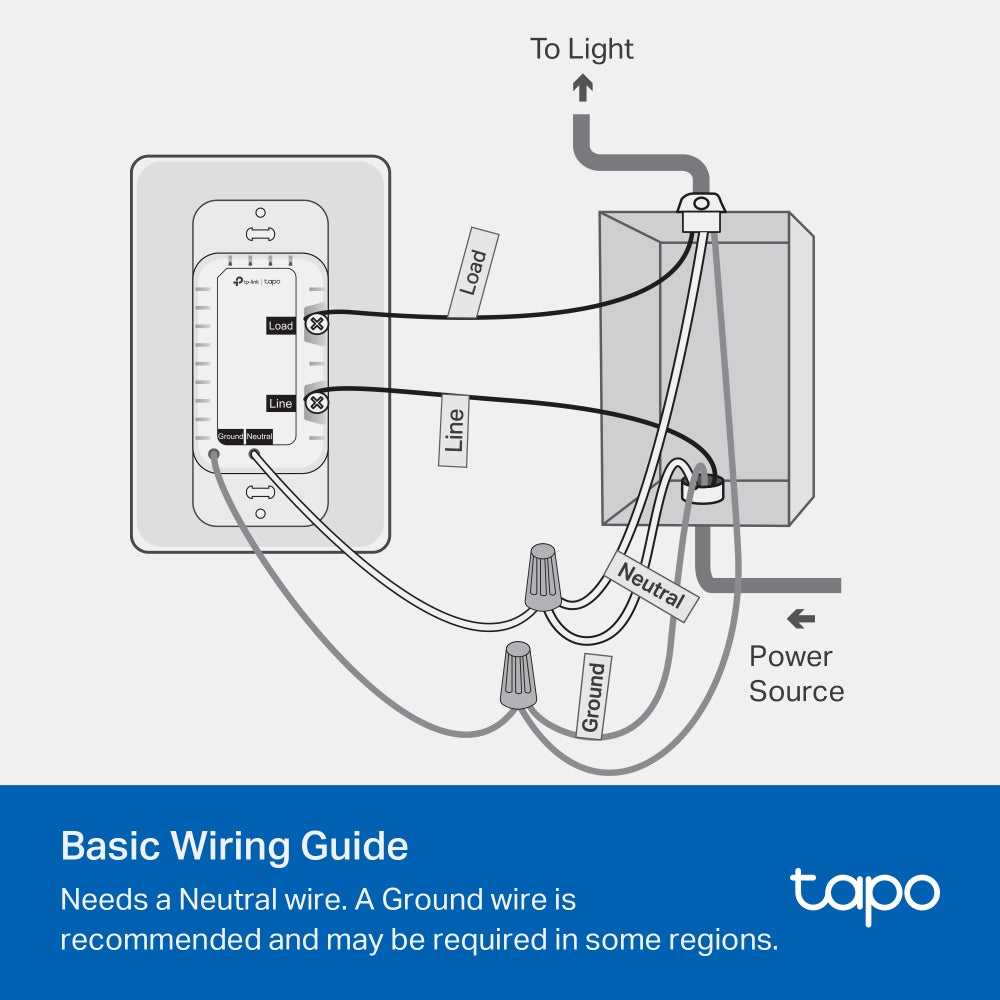

    Connect the wires to the smart dimmer switch as shown below.

    To Light Power Source
  • Ground: Usually green or copper.
  • Neutral: Usually white, and not connected to the dumb switch.
  • Line: Usually black and coming from the circuit breaker.
  • Load: Usually black. One end is connected to the light.
  • If you are unsure, consult a qualified electrician.
